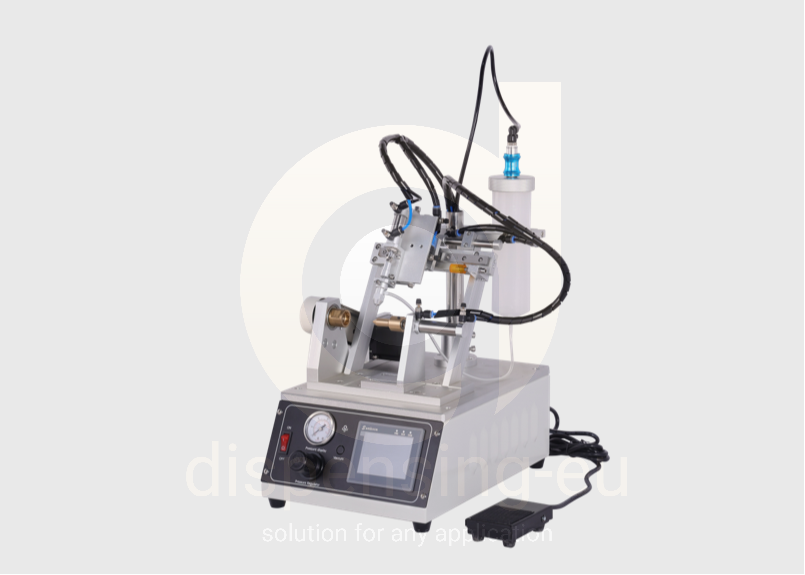

TH-2004L3-CY
Thread Coating Machine For Pre-Applied Thread Locker Applicator
Introduction
Feed system: 300ML tank + special valve for Pre-applied glue + s/s needle.that reduce waste during the glue addition process; According to different glue characteristics be equipped with different special dispensing valves, which can easily solve that glue be blocked during use process. dispensing glue is uniform and does not overflow, which can save more than 30% of glue..
Equipment function: The machine by adjustable inclination angle can be used to apply glue on different diameters screw, bolt, nut. screw drive, the starting position and the number of glue application circles are directly written through the touch screen, the operation is more intuitive and simple.
Application
Suitable for the all-different screw, bolt, nuts, Plug and various pneumatic connector, fastener thread coating;
Liquid Material: thread locker, thread sealant, adhesive, retaining compound.
Specification
ITEM: TH-2004L3
Speed: 0.5-0.8S/circle of thread
Length: ≤100 mm（can adjusting）
Thread ID: Size M5-M35
Range: no limit
Software: special software version 1.0 for thread coating machine
start way: foot switch/touch screen
Drive: Precision stepper motor
Input Air pressure: 5 bar (1bar =1.01972kg/cm² =14.5038psi)
Input voltage: 110/220VAC (Internal conversion)
Power: ≤75W
Temperature: 0-40℃
Working humidity: 40-60%
Weight: 14.5Kg
Size: 28*40*50（cm）
Advantage
1.Suitable for the thread M5-M35 and length less 100mm screw, bolt, nuts, Plug and various pneumatic connector fastener thread coating.
2.Good for each different threadlocker adhesive, as like pre-coating and anaerobic glue.
3.Easy to replace different type threadlokcer adhesive.
4.Touch screen PLC professionally control system and visual operation panel, easy to set dispensing glue parameters;. Adjustment gluing positions of start and end positions, and the number of gluing circles.
5.Only replace different product jig can suiting different products model.
6.Add voltage stabilization control module, the glue output is more stable.
7.Option add the unload device ,that save pick place time by manual.
8.The product be glued product by machine, greatly improves reliability and durability sealing.
Place of Origin: NingBo CHINA
Brand Name: TianHao Dispensing
Certification: CE
Model Number: TH-2004L3-CY
Field: Industrial
Shipping Terms: EXW/FOB/C&F
Minimum order Quantity: 1 set
Packing Detail: export standard package
Delivery Time: 10 work day
Supply Ability: 500pcs/months
