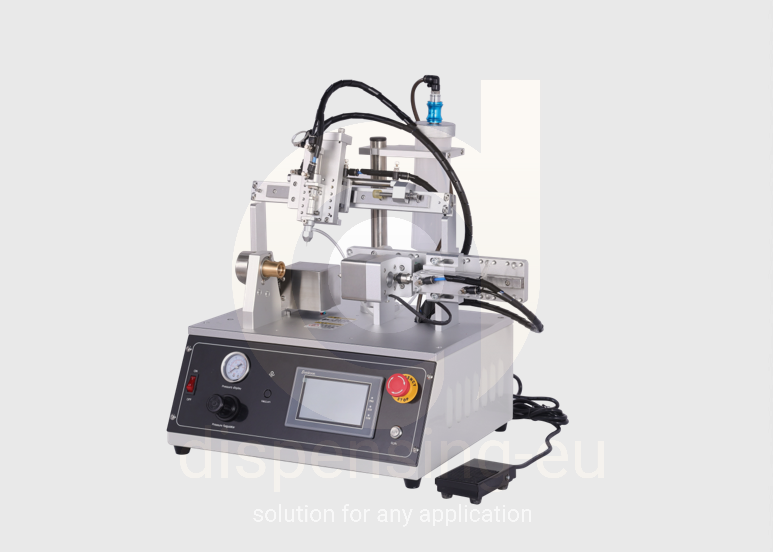

TH-2004L4-CX
Anaerobic Thread Coating Machine With Touch Screen
Introduction
Feed system: 300ML tank + special valve for anaerobic glue + s/s needle.that reduce waste during the glue addition process; According to different glue characteristics be equipped with different special dispensing valves, which can easily solve that glue be blocked during use process. dispensing glue is uniform and does not overflow, which can save more than 30% of glue.
Equipment function: The rotating axis adopts double drive design, which has better concentricity and greater rotating power, and it can process products up to 200MM lenght. The machine has I/O signal input and output functions, which can communicate with external devices. The unique gluing device can keep glue is evenly injected into the tooth socket of thread, and the product surface is clean. The machine is equipped with a touch-screen PLC gluing control system, which makes the operation more intuitive and convenient.
Application
Suitable for M3-M30 screw, bolt, nuts, Plug and various pneumatic connector, fastener thread coating.
Liquid Material: Anaerobic glue, thread locker adhesive. thread.
Specification
ITEM: TH-2004L4
Speed: 0.5-0.8S/circle of thread
Length: ≤200 mm(can adjusting)
Thread ID: Size M3-M30
Range: no limit
Start way: Panel /foot switch/touch screen
Control way: PLC+ special software version 2.0 for thread coating machine
Drive: Precision stepper motor
IO Signals: 1 Inputs / 1 Outputs
Input Air pressure: 5 bar (1bar =1.01972kg/cm² =14.5038psi)
Input voltage: 110/220VAC (Internal conversion)
Power: ≤120W
Temperature: 0-40℃
Working humidity: 40-60%
Weight: 19Kg
Size: 46*37*50（cm）
Advantage
1.The equipment is suitable for M3-M30 different model of screw, bolt, nut, connector fastener.
2. The machine suitable for lengths within 200mm.
3. Double-drive design, the product jig and the thimble device are equipped with independent motors to rotate synchronously, which ensures better concentricity and avoids uneven coating in during rotation proccess.
4. Professionally designed touch screen PLC gluing control system, visual operation panel, all processing parameters can be set directly through the touch screen, such as the adjustment of gluing start and end positions and gluing length (number of turns).
5. With external communication function, it can be connected with other devices.
6. For different Products should be processed only by changing the product jig.
7. It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing effect.
8. Equipped with a voltage stabilization control module, dispensing glue evenly, without drawing, dripping, and leaking glue.
9.Add optional for automatic unloading, saving the time of manual unloading.
10.The product be glued product by machine, greatly improves reliability and durability sealing..
Place of Origin: NingBo CHINA
Brand Name: TianHao Dispensing
Certification: CE
Model Number: TH-2004L3-S200(C1)
Field: Industrial
Shipping Terms: EXW/FOB/C&F
Minimum order Quantity: 1 set
Packing Detail: export standard package
Delivery Time: 10 work day
Supply Ability: 500pcs/months
