TH-2004L5-B

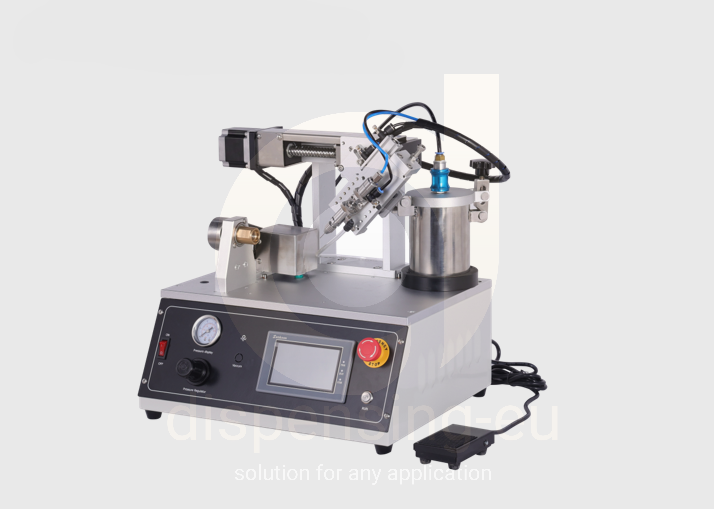

Pre-Coating Internal Thread Coating Machine With Touch Screen
Introduction
Feed system: 1KGS tank + special valve for Pre-coating glue + s/s needle. It is specially designed for pre-coating thread locker adhesive, Dispensing glue is uniform and no overflow, which can save more than 30% of glue.
The machine is equipped with a touch-screen PLC gluing control system, which makes the operation more intuitive and convenient
Application
Suitable for M3-M30 screw, bolt, nuts, Plug and various pneumatic connector, fastener internal thread coating.
Liquid Material: Pre-coating threadlocker adhesive.
Specification
ITEM: TH-2004L5
Speed: 0.5-0.8S/circle of thread
Length: ≤50 mm(can adjusting)
Thread ID: Size ≤M30
Range: no limit
Start way: Panel /foot switch/touch screen
Control way: PLC+ special software version 2.0 for thread coating machine
Drive: Precision stepper motor
IO Signals: 1 Inputs / 1 Outputs
Input Air pressure: 5 bar (1bar =1.01972kg/cm² =14.5038psi)
Input voltage: 110/220VAC (Internal conversion)
Power: ≤120W
Temperature: 0-40℃
Working humidity: 40-60%
Weight: 19.5Kg
Size: 42*37*40（cm）
Advantage
1.The equipment is suitable for M3-M30 different model of screw, bolt, nut, connector fastener.
2. The machine suitable for lengths of inside thread within 50mm.
3. Specially designed for the internal thread gluing process can freely adjust the inclination angle of the glue nozzle to realize the application of different diameters and lengths thread.
4. Professionally designed touch screen PLC gluing control system, visual operation panel, all processing parameters can be set directly through the touch screen, such as the adjustment of gluing start and end positions and gluing length (number of turns).
5. With external communication function, it can be connected with other devices.
6. For different Products should be processed only by changing the product jig.
7. It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing effect.
8. Equipped with a voltage stabilization control module, dispensing glue evenly, without drawing, dripping, and leaking glue.
9.Add optional for automatic unloading, saving the time of manual unloading.
10.The product be glued product by machine, greatly improves reliability and durability sealing.
Place of Origin: NingBo CHINA
Brand Name: TianHao Dispensing
Certification: CE
Model Number: TH-2004L3-N200(B1)
Field: Industrial
Shipping Terms: EXW/FOB/C&F
Minimum order Quantity: 1 set
Packing Detail: export standard package
Delivery Time: 10 work day
Supply Ability: 500pcs/months
