TH-2004L4-AX
Pre-Coating Glue Thread Coating Machine With Touch Screen
Introduction
Feed system: 30CC/55CC Bareel +vaccum function + s/s needle. Syringe design is adopted, Easy to replace different theadlocker adhesive and replace barrel cost is low. It is the best choice for small batch production of different products and only a little glue be coating.
Equipment function: The machine by adjustable inclination angle can be used to apply glue on different diameters screw, bolt, nut. screw drive, the starting position and the number of glue application circles are directly written through the touch screen, the operation is more intuitive and simple.
Application

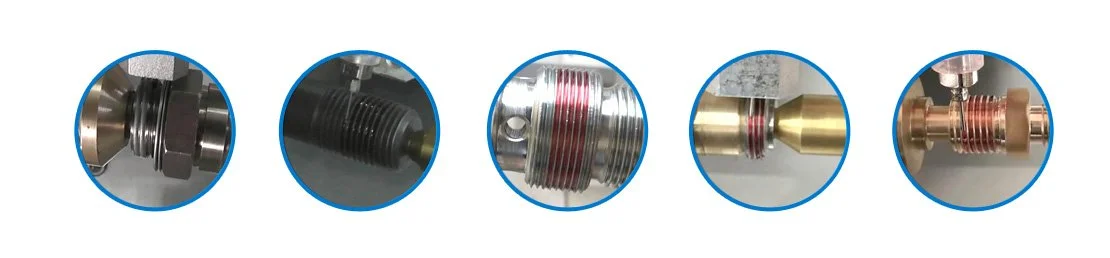

Suitable for M3-M30 screw, bolt, nuts, Plug and various pneumatic connector, fastener thread coating.
Liquid Material: Anaerobic glue, thread locker adhesive thread.
Packing capacity: 50ml packing glue.
Specification
ITEM: TH-2004L4
Speed: 0.5-0.8S/circle of thread
Length: ≤200 mm(can adjusting)
Thread ID: Size M3-M30
Range: no limit
Start way: Panel /foot switch/touch screen
Control way: PLC+ special software version 2.0 for thread coating machine
Drive: Precision stepper motor
Input Air pressure: 5 bar (1bar =1.01972kg/cm² =14.5038psi)
Input voltage: 110/220VAC (Internal conversion)
Power: ≤120W
Temperature: 0-40℃
Working humidity: 40-60%
Weight: 14.5Kg
Size: 46*37*50（cm）
Advantage
Advantage
1.The equipment is suitable for M3-M30 different model of screw, bolt, nut, connector fastener.
2. The machine suitable for lengths within 200mm.
3. Double-drive design, the product jig and the thimble device are equipped with independent motors to rotate synchronously, which ensures better concentricity and avoids uneven coating in during rotation process.
4. Professionally designed touch screen PLC gluing control system, visual operation panel, all processing parameters can be set directly through the touch screen, such as the adjustment of gluing start and end positions and gluing length (number of turns).
5. With external communication function, it can be connected with other devices.
6. For different Products should be processed only by changing the product jig.
7. It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing effect.
8. Equipped with a voltage stabilization control module, dispensing glue evenly, without drawing, dripping, and leaking glue.
9.Add optional for automatic unloading, saving the time of manual unloading.
10.The product be glued product by machine, greatly improves reliability and durability sealing.
Place of Origin: NingBo CHINA
Brand Name: TianHao Dispensing
Certification: CE
Model Number: TH-2004L3-S200(A1)
Field: Industrial
Shipping Terms: EXW/FOB/C&F
Minimum order Quantity: 1 set
Packing Detail: export standard package
Delivery Time: 10 work day
Supply Ability: 500pcs/months
