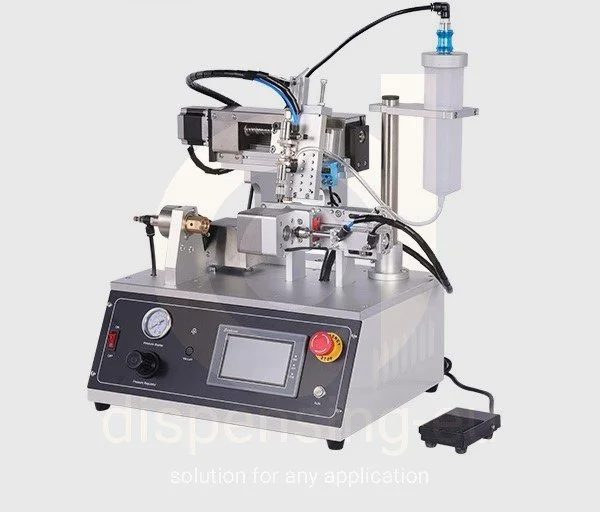

TH-2004L6-CY
High Precision Anaerobic Thread Coating Machine With Touch Screen
Introduction
Feed system: 300ML tank + special valve for anaerobic glue + s/s needle, that reduce waste during the glue addition process; According to different glue characteristics be equipped with different special dispensing valves, which can easily solve that glue be blocked during use process. dispensing glue is uniform and does not overflow, which can save more than 30% of glue.
Equipment function: The vacuum suction device specially designed for Micro- screws coating .that the screw no be felled from the fixture. Double-drive design, the product jig and the thimble device are equipped with independent motors to rotate synchronously, which ensures better concentricity and avoids uneven coating in during rotation proccess. The machine is equipped with a touch-screen PLC gluing control system, which makes the operation more intuitive and convenient.
Application
Suitable for M1-M3 of Micro-screw, bolt, nuts, Plug and various pneumatic connector, fastener thread coating;
Liquid Material: Anaerobic glue, thread locker adhesive thread;
Packing capacity: 50ml packing glue;
Specification
ITEM: TH-2004L6
Speed: 0.3-0.5S/circle of thread
Length: ≤50 mm(can adjusting)
Thread ID: Size M1 - M3
Vacuum way: vacuum suction
Start way: Panel /foot switch/touch screen
Control way: PLC+ special software version 2.0 for thread coating machine
Drive: 3 sets of Precision stepper motor
IO Signals: 1 Inputs / 1 Outputs
Input Air pressure: 5 bar (1bar =1.01972kg/cm² =14.5038psi)
Input voltage: 110/220VAC (Internal conversion)
Power: ≤120W
Temperature: 0-40℃
Working humidity: 40-60%
Weight: 19.5Kg
Size: 46*37*40（cm）
Advantage
1.The equipment developed and designed for various flat head, mushroom head, hexagon socket and other tiny screws of M1-M3 different of screw, bolt, nut, connector fastener.
2. Highly sensitive vacuum suction device effectively solves product falling in the coating process.
3. Double-drive design, the product jig and the thimble device are equipped with independent motors to rotate synchronously, which ensures better concentricity and avoids uneven coating in during rotation proccess.
4. Professionally designed touch screen PLC gluing control system, visual operation panel, all processing parameters can be set directly through the touch screen, such as the adjustment of gluing start and end positions and gluing length (number of turns) .
5. With external communication function, it can be connected with other devices.
6. For different Products should be processed only by changing the product jig.
7. It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing effect.
8. Equipped with a voltage stabilization control module, dispensing glue evenly, without drawing, dripping, and leaking glue.
9.Add optional for automatic unloading device , saving the time of manual unloading and no easy pick and place question.
10.The product be glued product by machine, greatly improves reliability and durability sealing.
Place of Origin: NingBo CHINA
Brand Name: TianHao Dispensing
Certification: CE
Model Number: TH-2004L6-CY
Field: Industrial
Shipping Terms: EXW/FOB/C&F
Minimum order Quantity: 1 set
Packing Detail: export standard package
Delivery Time: 10 work day
Supply Ability: 500pcs/months
