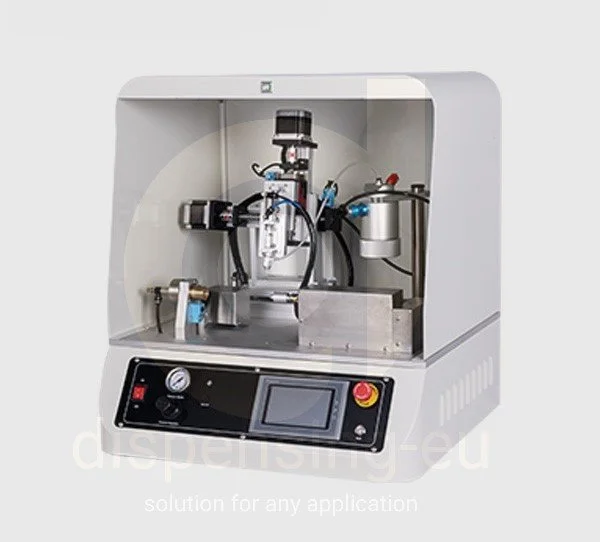

TH-2004L7-AX
Full Automatic Anaerobic Thread Coating Machine With Edit And Save Program
Introduction
Feed system: 50ML tank + special valve for anaerobic glue + s/s needle. It is specially designed for 50ml capacity packaging, the original 50ml packaging can be used directly ,that reduce waste during the glue addition process; According to different glue characteristics be equipped with different special dispensing valves, which can easily solve that glue be blocked during use process. dispensing glue is uniform and does not overflow, which can save more than 30% of glue.
Equipment function: This machine adopts multi-axis linkage technology, which can easily deal with bolt processing of different model screw. bolt, nut, This machine has program editing and storage functions, which can realize automatic edit and adjusting function, storage programs within 100 groups. Only select different programs for different products. The machine is equipped with a touch-screen PLC gluing control system, which makes the operation more simple and convenient.
Application
Suitable for M1-M28 screw, bolt, nuts, Plug and various pneumatic connector, fastener thread coating.
Liquid Material: Anaerobic glue, thread locker adhesive thread.
Packing capacity: 50ml packing glue.;
Specification
ITEM: TH-2004L7
Speed: 0.3-0.8S/circle of thread
Length: ≤100 mm(can adjusting)
Thread ID: Size M1 - M30
Range: no limit
Control software: special software version 3.0 for thread coating machine
Start way: Panel /foot switch/touch screen 5”
Drive: 4 Sets stepper moto
IO Signals: 1 Inputs / 1 Outputs
Date memory capacity: 100 groups programs
Topping method: Electric
Suction method: Vacuum adsorption
Input Air pressure: 5 bar (1bar =1.01972kg/cm² =14.5038psi)
Input voltage: 110/220VAC (Internal conversion)
Power: ≤350W
Temperature: 0-40℃
Working humidity: 40-60%
Weight: 52Kg
Size: 63*60*68（cm）
Advantage
11.The equipment is suitable for M1-M30 different model of screw,bolt,nut, connector fastener.
2. The machine suitable for lengths within 100mm.
3. Quote multi-axis linkage control technology, the gluing program can be edited and called through the touch screen, With program memory storage function, it can store up to 100 groups of files.
4. Through the unique teaching function, only fill the tooth pitch, starting gluing position, and the number of gluing circles to achieve precise gluing.
5. Semi-enclosed design, equipped with safety cover and LED work lights, the whole machine is beautiful and neatly.
6. machine With vacuum suction function, good for small flat-head screws,and product be automatically unloaded with stainless steel slides.
7. Independent overall center offset adjustment function, one-button adjustment location for the production of large diameter spans.
8. Electric thimble device can be stretched and retracted freely, and the function of buffering and anti-collision.
9. All processing parameters can be set directly through the touch screen, with powerful functions and easy operation.
10. With external communication function, it can be connected with other devices.
11. It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing effect.
12. Equipped with a voltage stabilization control module, dispensing glue evenly, without drawing, dripping, and leaking glue.
13.The product be glued product by machine, greatly improves reliability and durability sealing.
Place of Origin: NingBo CHINA
Brand Name: TianHao Dispensing
Certification: CE
Model Number: TH-2004L7-AX
Field: Industrial
Shipping Terms: EXW/FOB/C&F
Minimum order Quantity: 1 set
Packing Detail: export standard package
Delivery Time: 10 work day
Supply Ability: 500pcs/months
